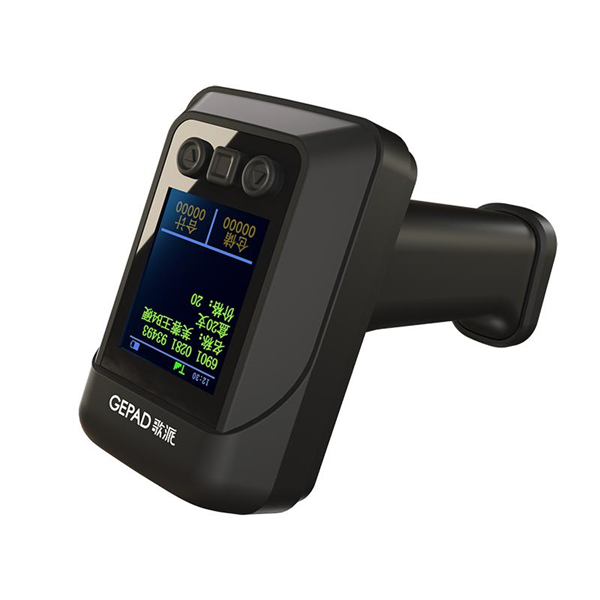

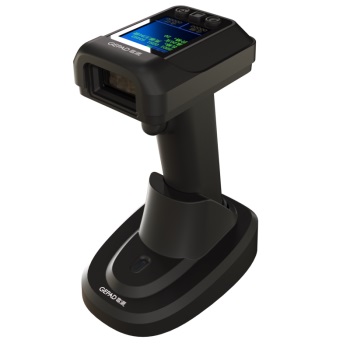

1.77 Inch Screen 2.4G Bar Codes Reader Scanner With Display

Model No.

GT-531DB

Product name

1.77 Inch Screen Wireless 2D Barcode Scanner With Charging Base

Scan mode

CMOS

Scan speed

65cm/s

Resolution

3mil

Scan distance

40-500mm

Scan angle

Pitch angle: ±60° Skew angle: ±55°

Scan object

2D/1D barcode from printed materials, film, cellphone screen & computer screen(support mobile payment)

Decode Capability

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5（IATA 2 of 5）, Codabar（NW-7）, MSI, GS1 Databar(Omnidirectional, Limited, Expanded), Tepepen, GS1 Composite etc.

2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc.

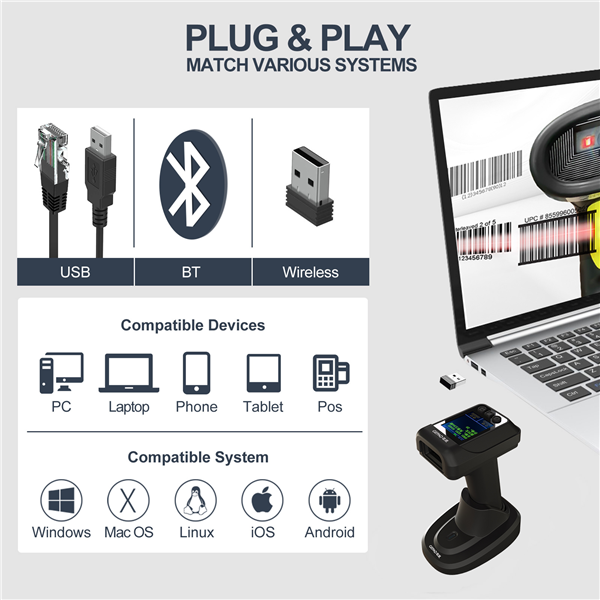

Support interfaces

USB, 2.4G, Bluetooth

Support system

Windows, Mac OS, IOS, Linux, Unix, Android

Cable length

1.5m

Prompting Mode

Buzzer ,indicator light

Drop Test

1.8m

Battery capacity

2000mAH
